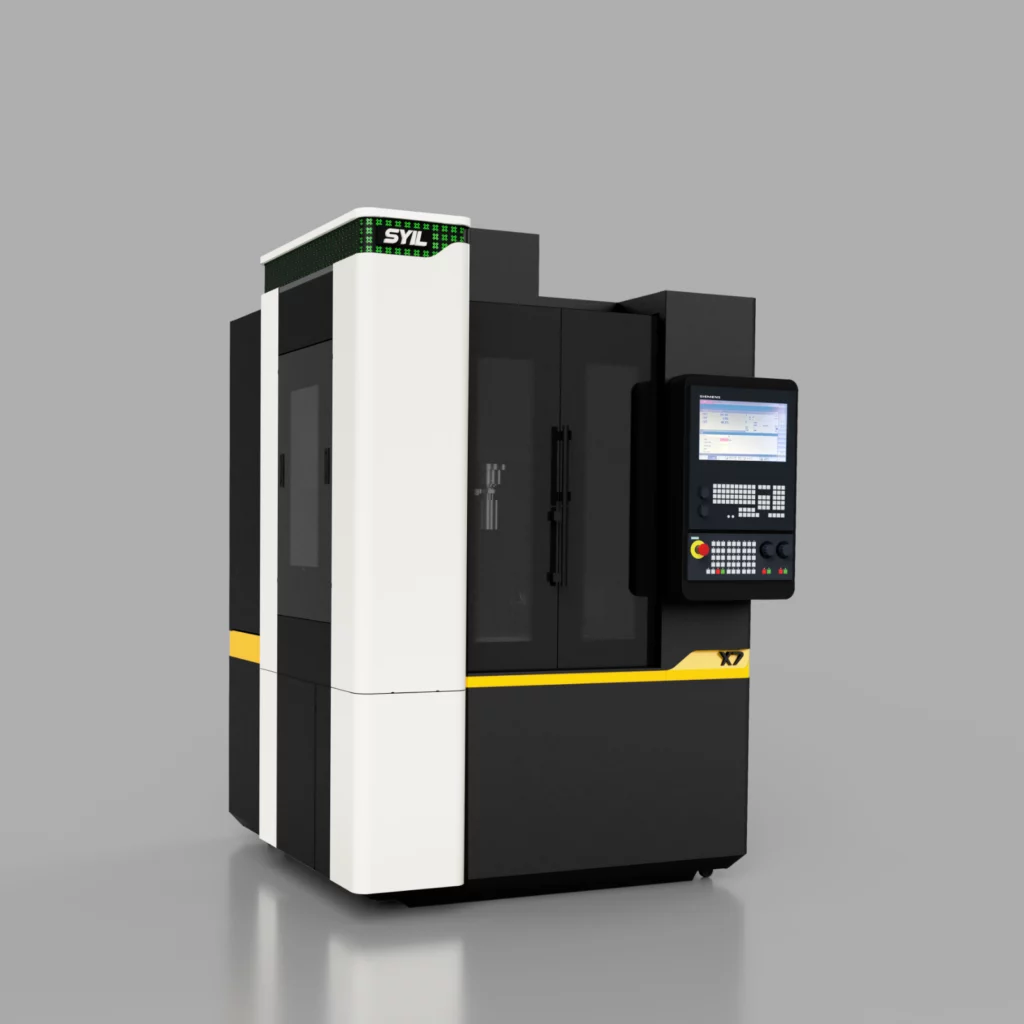

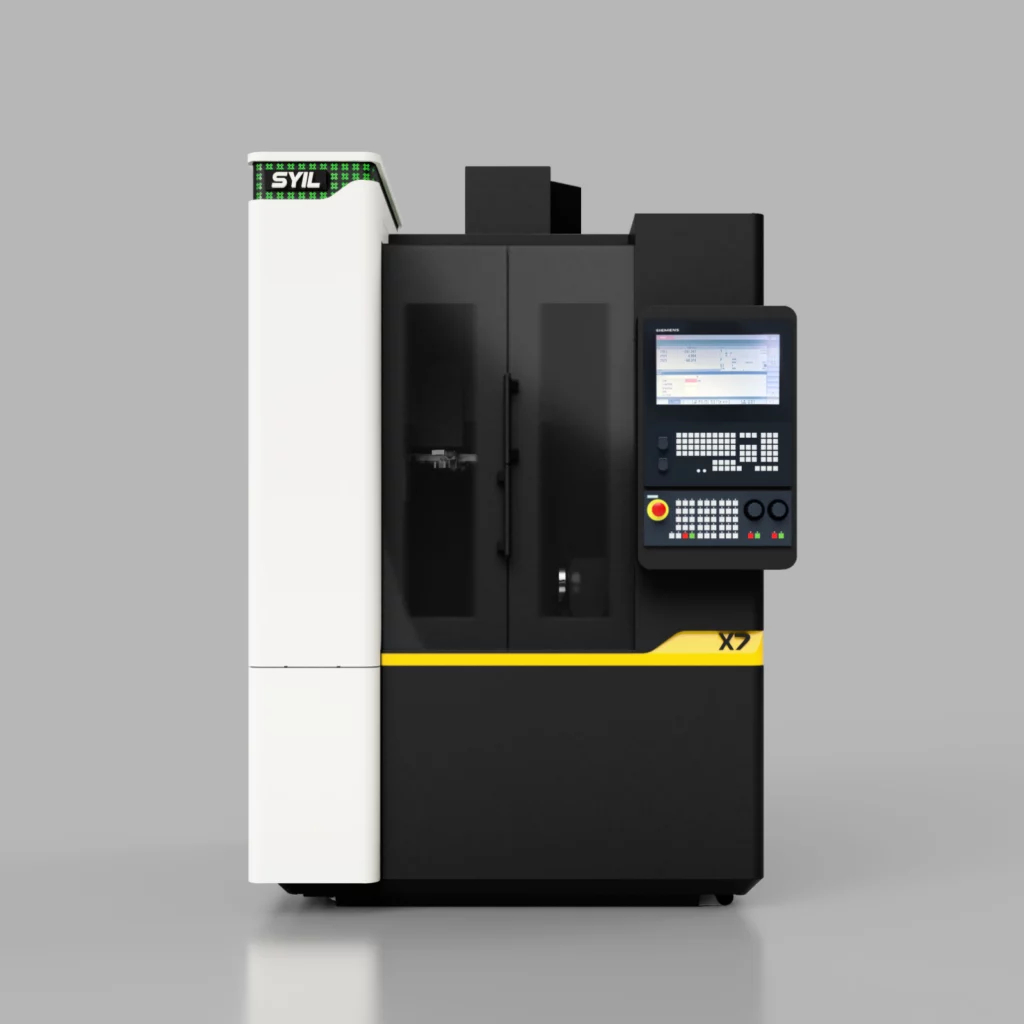

The X7 is our 3-axis machining center for high-speed machining.
Designed by SYIL in Germany. Superb solid construction.

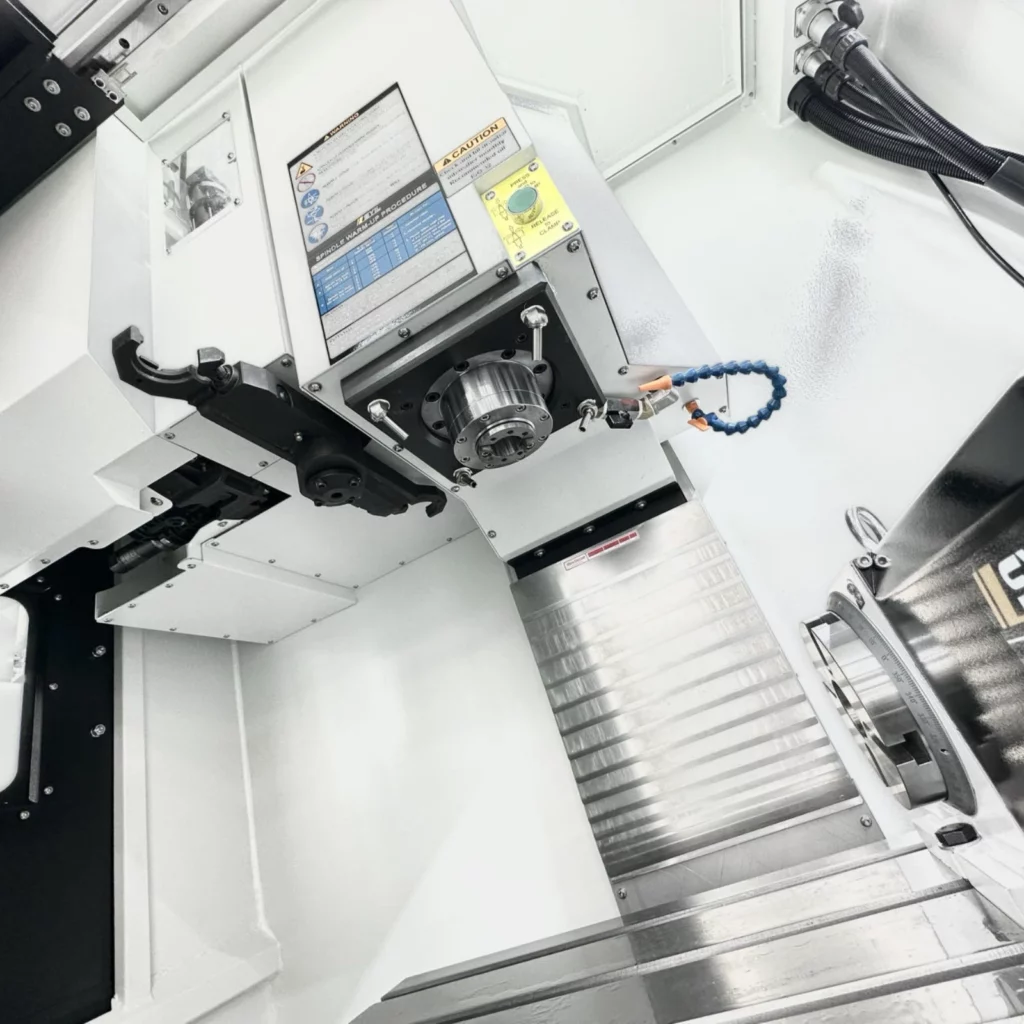

16-pocket ATC arm type
Rigid taping
Coolant System and Air blast
CSA compliant electrical system
X Axis Travel 400 mm [ 15.75 in ]
Y Axis Travel 300 mm [ 11.81 in ]
Z Axis Travel 380 mm [ 14.96 in ]
_______________________________________________
Table dimensions
» 700 mm x 300 mm [ 24.56 in x 11.81 in ]
Max load capacity of the table
» 100 Kg [ 220 lbs ]
Distance between spindle and column
» 358mm [ 14.09 in ]
Distance from spindle nose to table
» 150-530 mm [ 5.91-20.87 in ]
T-Slot ( Width x Number x Spacing )
» 14 mm x 3 x 100 mm
Spindle Cone BT30 ( options available )
Maximum Speed 12,000 RPM ( options available )
Power (Rated/Max) 7.5/11 kW [10/15hp]
Power drive Belt
Max Rapid Speed (G0) 30,000 mm/min [ 1,181 in/min ]
Max cutting speeds 10,000 mm/min [ 394 in/min ]
Precision < 0.003 mm [ < 0.00012 in ]
Tool changer type ARM
Tool switching time 1.5 sec
Tool quantity 16
_________________________________________________
Max tool length 100 mm [ 4 in ]
Max tool diameter (solid) 16 mm [ 0.625 in ]
Max tool diameter (facemill) 50 mm [ 2 in ]
Max tool weight 3 Kg [ 6.5 lbs ]
Max loading capacity of magazine 240 Kg [ 530 lbs ]
Leadscrews (diam/pitch) X 25/10mm [ 0.98/0.39 in ]
Leadscrews (diam/pitch) YZ 25/10mm [ 0.98/0.39 in ]
Linear bearing rail size X 20mm [ 0.79 in ]
Linear bearing rail size Y 25mm [ 0.98 in ]
Linear bearing rail size Z 25mm [ 0.98 in ]
Coolant tank capacity 80 Liters [ 21 gal ]
Air pressure min/max 0.4/0.8 Mpa ( 60/120 psi)
_______________________________________________
Machine weight
» 1,800 Kg [ 3,968 lbs ]
Machine dimensions (L x W x H)
» 1,800 mm x 1,500 mm x 2,290 mm
. [ 70.87 in x 59.06 in x 90.16 in ]
. Footprint including coolant tank
Gross weight
» 2,200 kg [ 4,850 lbs ]
Crate dimensions (L x W x H)
» 2,000 mm x 1,700 mm x 2,260 mm [ 78.74 in x 66.93 in x 88.98 in ]
