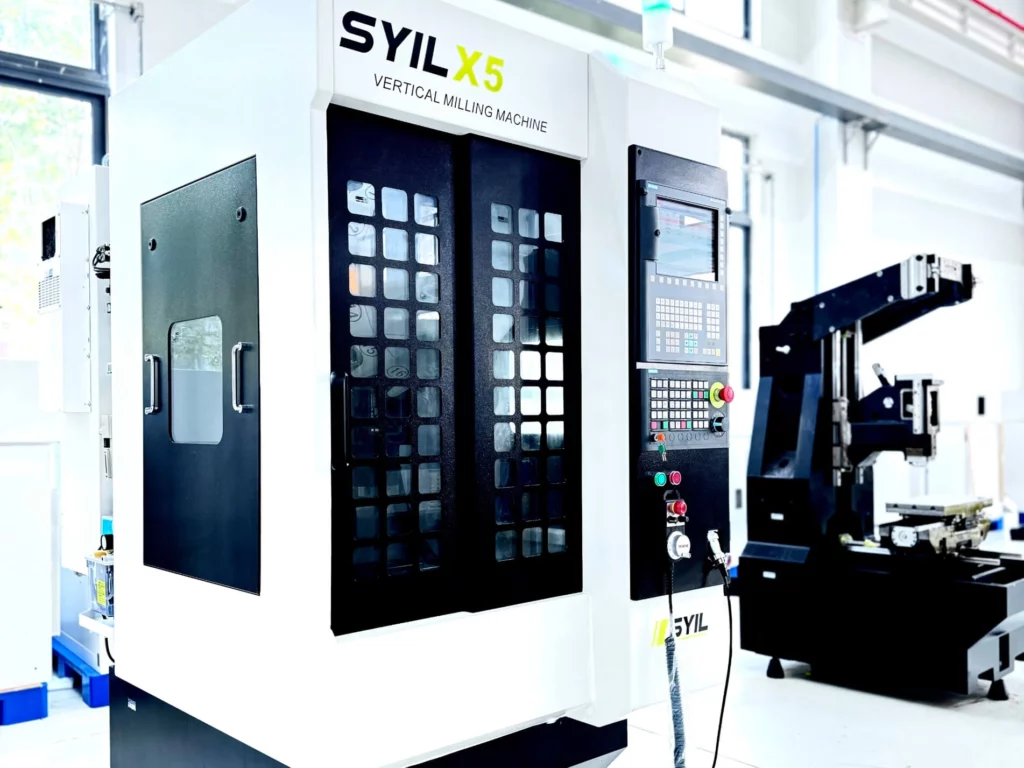

SYIL X5 Gen1 – CNC Vertical Milling

Table

• Table size: 560×260 mm
• T-Slots (number×size×distance): 3×14×80 mm
• Max. table load: 150 kg

Travel

• X Travel: 300 mm
• Y Travel: 260 mm
• Z Travel: 300 mm
• Distance between spindle end and tabletop: 150-450 mm
• Distance between spindle and column surface: 330 mm

Spindle

• Spindle nose: BT30
• Spindle speeds: 20,000 rpm
• Mechanism of transmission: Direct

Feed

• Cutting feed: 10,000 mm/min
• Rapid traverse: 30,000 mm/min

Auto Tool Changer

• Tool type: Wheel
• Tool storage capacity: 16 positions
• Max. tool diameter: 63 mm
• Max. tool length: 200 mm
• Max. tool weight: 3 kg
• Tool to Tool: 1 s

Power

• Siemens
• Spindle motor output(Rate/Max): 4.8 kW
• Drive motors(X,Y,Z): 1/2.2/3.5 kW
• Power Source: AC380V/ 3-Phase
• Power: 12 kVA

FANUC

• Spindle motor output(Rate/Max): 3.7/5.5 kW
• Drive motors (X,Y,Z): 1/2.5/2.7 kW
• Power Source: AC220V/ 3-Phase
• Power: 12 kVA

Syntec

• Spindle motor output(Rate/Max): 5.5/7.5 kW
• Drive motors (X,Y,Z): 1/1.7/2.4 kW
• Power Source: AC380V/ 3-Phase
• Power: 12 kVA

Machine Size and Weight

• Floor size (L×W×H): 2020×1000×2360 mm
• Weight: 2180 kg
