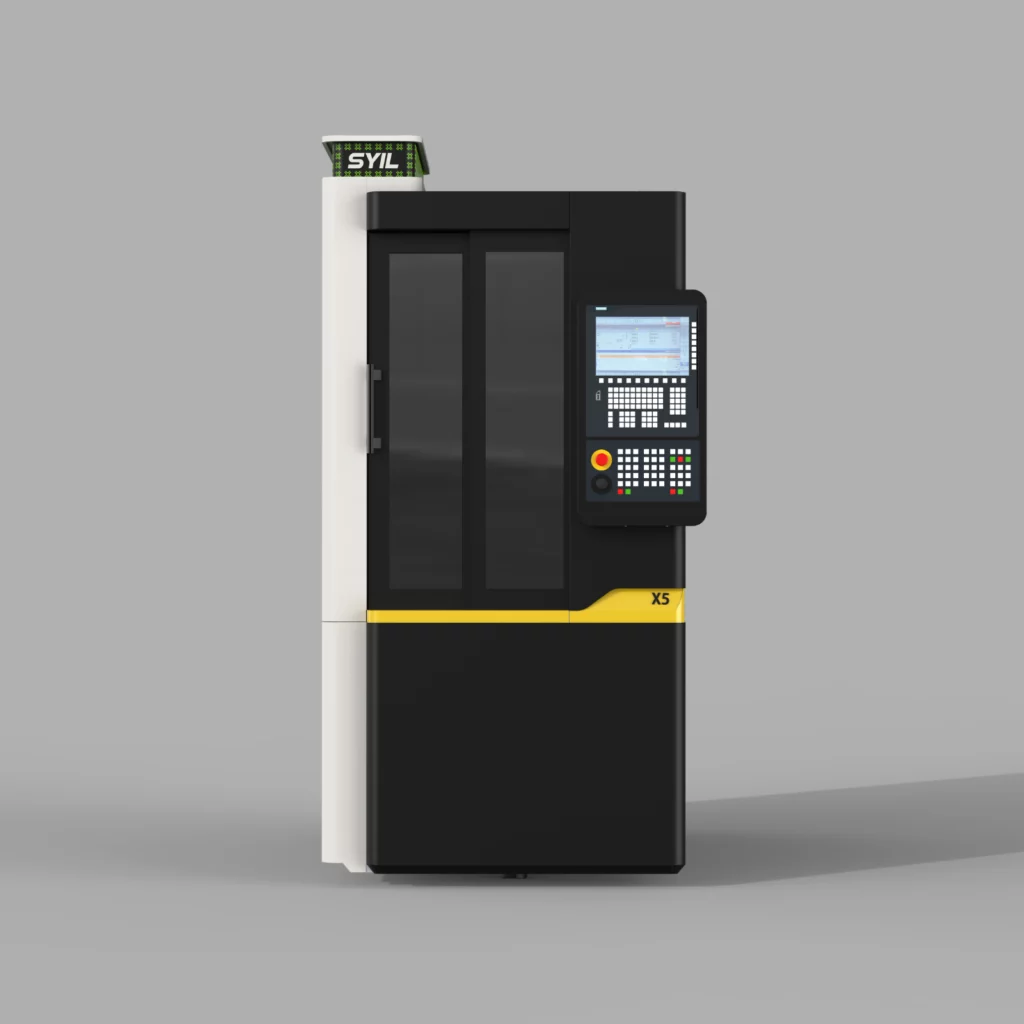

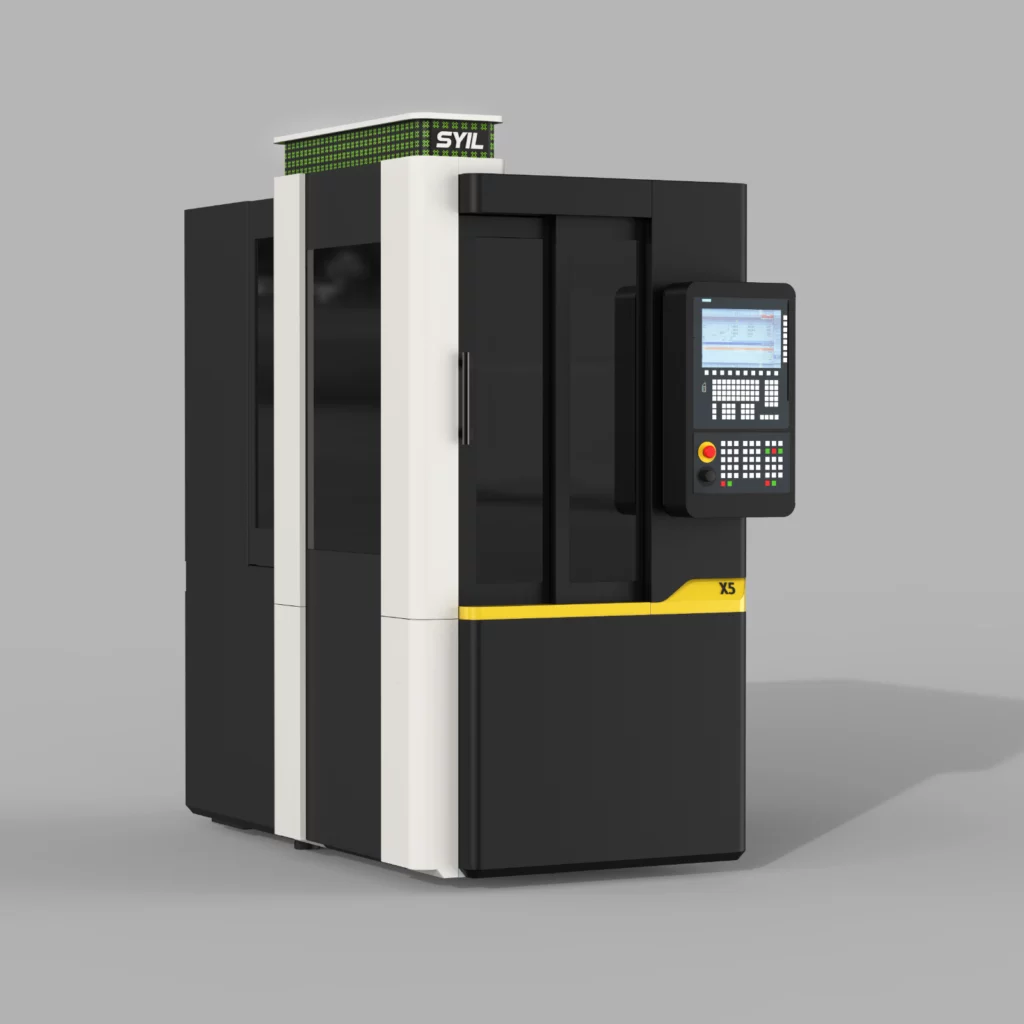

The X5 is our ultra compact 3-axis machining center
Designed by SYIL in Germany. Superb solid construction.

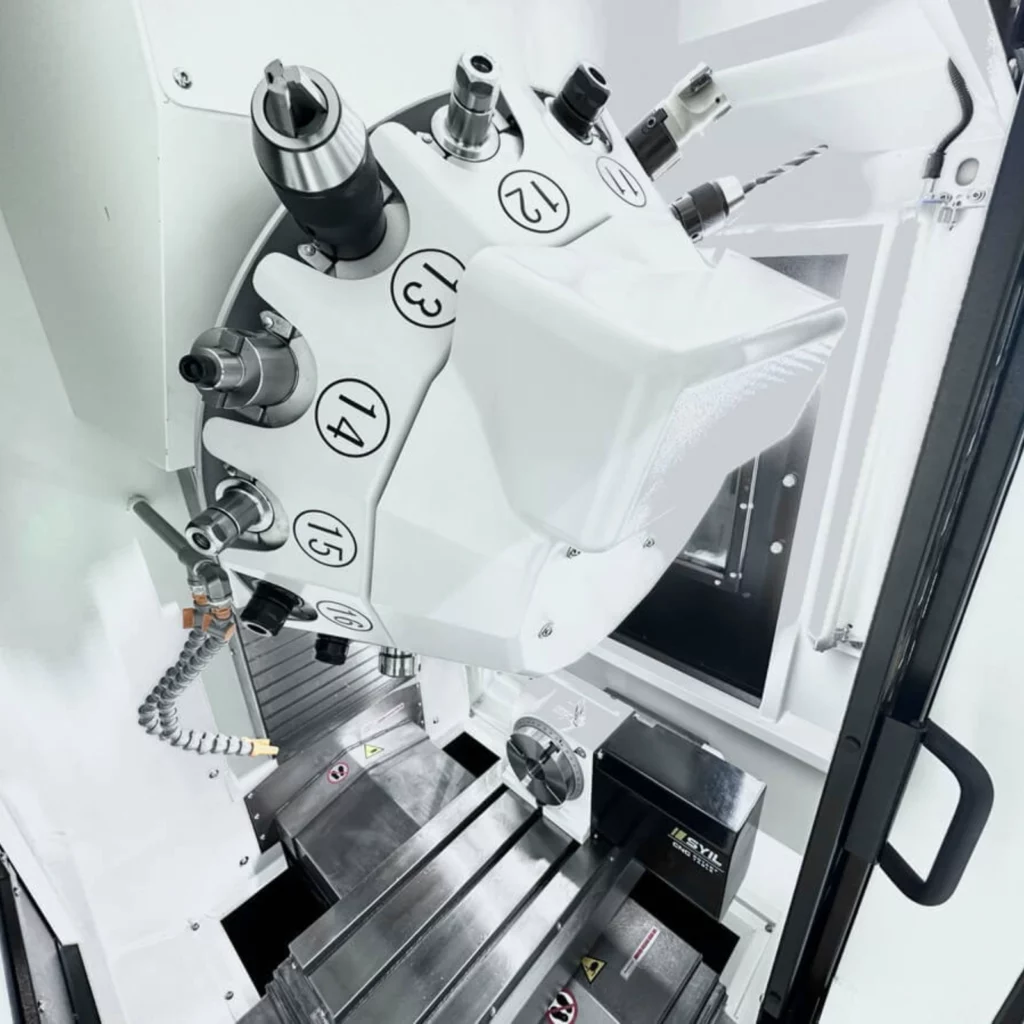

16-pocket ATC arm type
Rigid taping
Coolant System and Air blast
CSA compliant electrical system
X Axis Travel 300 mm [ 11.81 in ]
Y Axis Travel 260 mm [ 10.24 in ]
Z Axis Travel 300 mm [ 11.81 in ]
_______________________________________________
Table dimensions
» 560 mm x 260 mm [ 22.05 in x 10.24 in ]
Max load capacity of the table
» 150 Kg [ 330 lbs ]
Distance between spindle and column
» 330mm [ 13 in ]
Distance from spindle nose to table
» 150-450 mm [ 5.91-17.72 in ]
T-Slot ( Width x Number x Spacing )
» 14 mm x 3 x 80 mm
Spindle Cone BT30
Maximum Speed 20,000 RPM
Power (Rated/Max) 5.5/7.5 kW [7.5/10hp]
Power drive Direct drive
Max Rapid Speed (G0) 35,000 mm/min [ 1,378 in/min ]
Max cutting speeds 10,000 mm/min [ 394 in/min ]
Precision < 0.003 mm [ < 0.00012 in ]
Tool changer type Servo wheel
Tool switching time 1.0 sec
Tool quantity 16
_________________________________________________
Max tool length 250 mm [ 9.84 in ]
Max tool diameter (facemill) 80 mm [ 3 in ]
Max tool weight 3 Kg [ 6.5 lbs ]
Max loading capacity of magazine 25 Kg [ 55 lbs ]
Leadscrews (diam/pitch) X 25/12mm [ 0.98/0.47 in ]
Leadscrews (diam/pitch) YZ 25/12mm [ 0.98/0.47 in ]
Linear bearing rail size X 20mm [ 0.79 in ]
Linear bearing rail size Y 25mm [ 0.98 in ]
Linear bearing rail size Z 30mm [ 1.18 in ]
Coolant tank capacity 80 Liters [ 21 gal ]
Air pressure min/max 0.4/0.8 Mpa ( 60/120 psi)
_______________________________________________
Machine weight
» 2,000 Kg [ 4,409 lbs ]
Machine dimensions (L x W x H)
» 2,020 mm x 1,000 mm x 2,360 mm
. [ 79.53 in x 39.37 in x 92.91 in ]
. Footprint including coolant tank
Gross weight
» 2,200 kg [ 4,850 lbs ]
Crate dimensions (L x W x H)
» 2,160 mm x 1,150 mm x 2,300 mm [ 85.04 in x 45.28 in x 90.55 in ]
