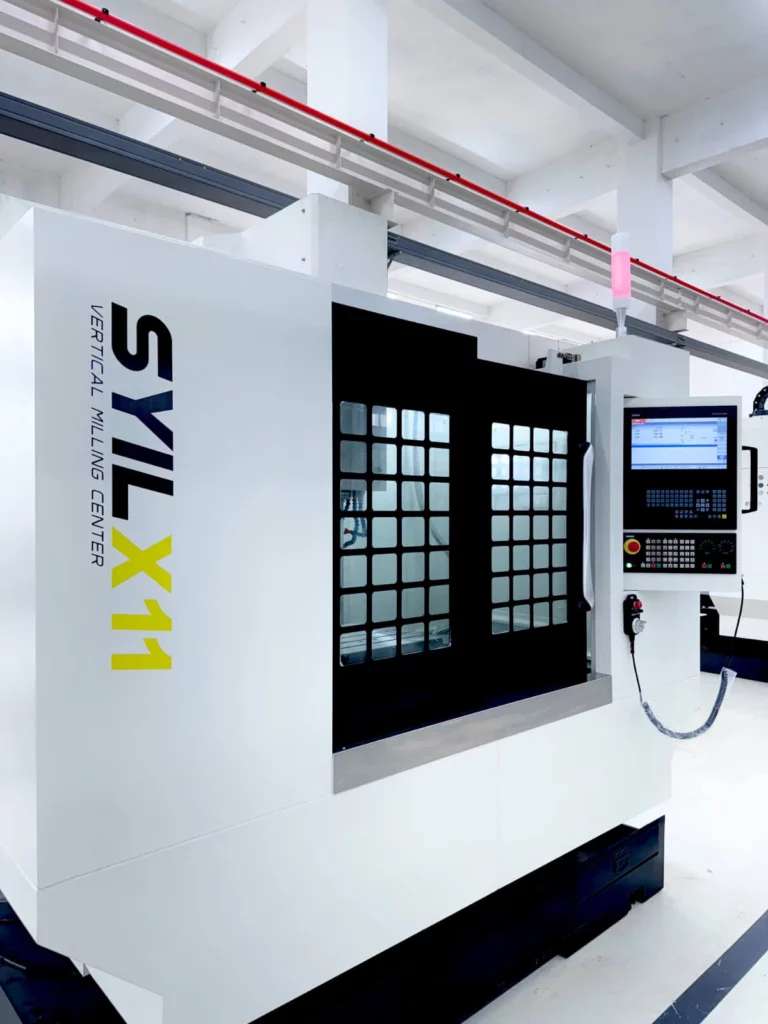

The SYIL X11 Vertical Machining Centre offers robust construction and a sleek design, maximizing productivity even in limited workspaces.

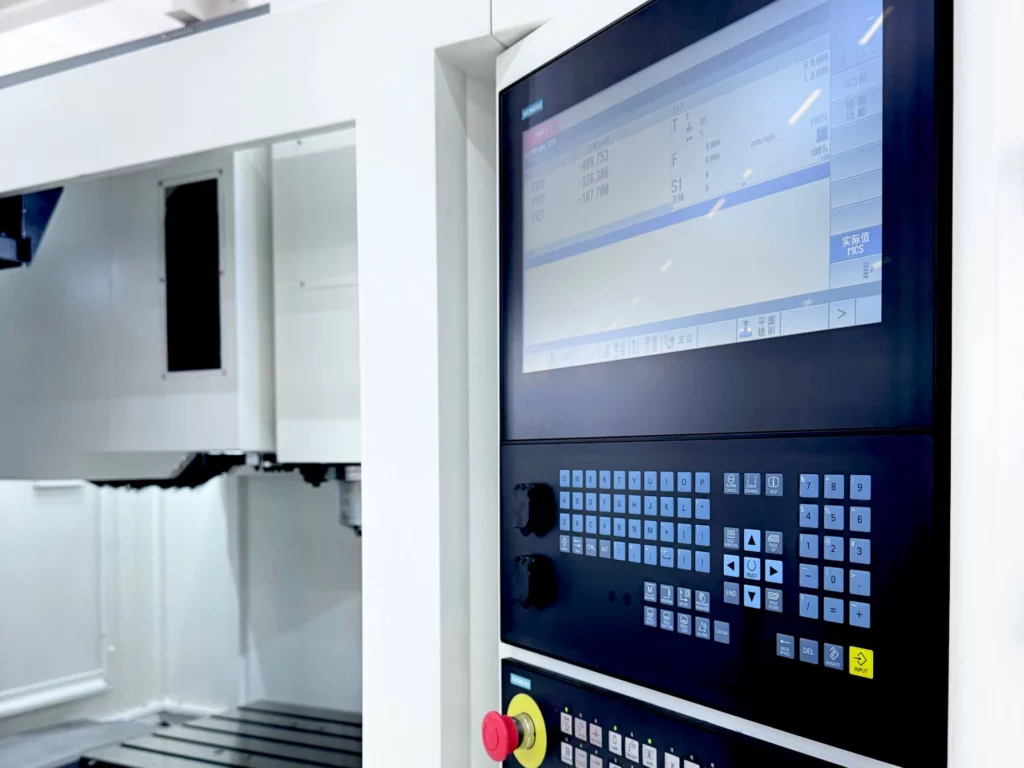

The SYIL X11 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
X Axis Travel 1000 mm [ 39.37 in ]
Y Axis Travel 500 mm [ 19.68 in ]
Z Axis Travel 500 mm [ 19.68 in ]
_______________________________________________
Table dimensions
» 1050 mm x 550 mm [ 41.34 in x 21.65 in ]
Max load capacity of the table
» 600 Kg [ 1,323 lbs ]
T-Slot ( Width x Number x Spacing )
» 18 mm x 5 x 90 mm
Spindle Cone BT40
Maximum Speed 10,000 RPM
Power (Rated/Max) 11/17 kW [15/23hp]
Max Rapid Speed (G0) 30,000 mm/min [ 1,181 in/min ]
Max cutting speeds 10,000 mm/min [ 394 in/min ]
Precision < 0.01 mm

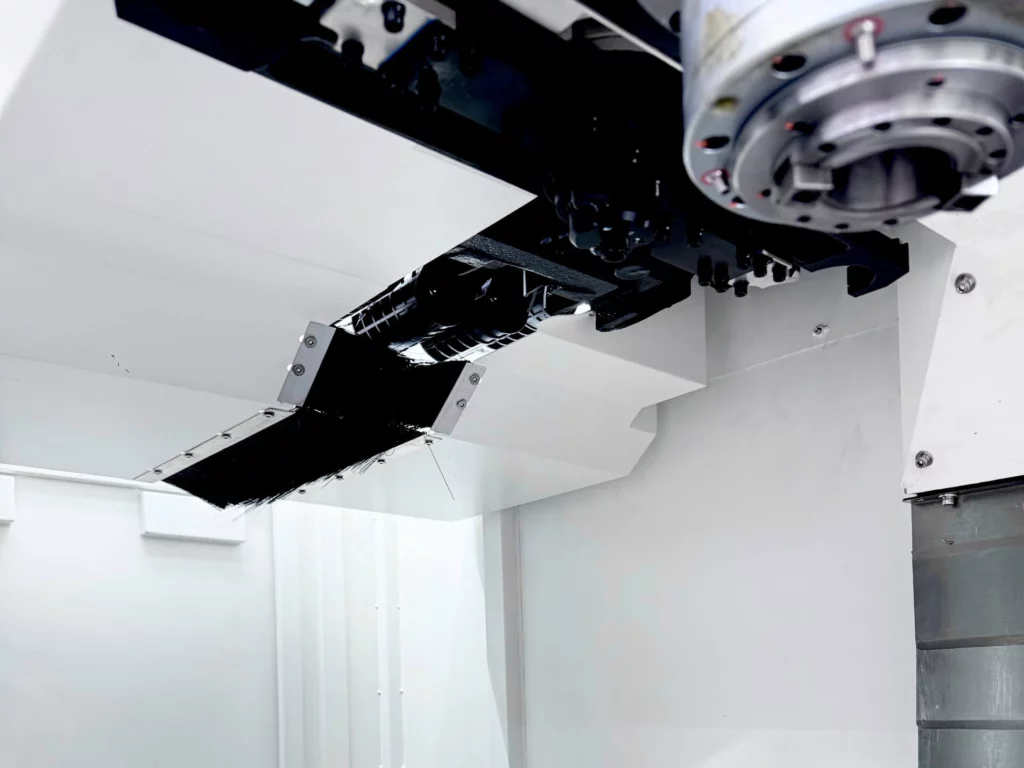

Tool changer type ARM
Tool switching time 1.6 sec
Tool quantity 24
_________________________________________________
Max tool length 240 mm [ 9.45 in ]
Max tool diameter (facemill) 150 mm [ 5.91 in ]
Max tool weight 8 Kg [ 17.6 lbs ]
Max loading capacity of magazine 380 Kg [ 838 lbs ]
Leadscrews (diam/pitch) X 40/12mm [ 1.57/0.47 in ]
Leadscrews (diam/pitch) YZ 40/12mm [ 1.57/0.47 in ]
Linear bearing rail size X 45mm [ 1.77 in ]
Linear bearing rail size Y 45mm [ 1.77 in ]
Linear bearing rail size Z 45mm [ 1.77 in ]
Coolant tank capacity 280 Liters [ 74 gal ]
Air pressure min/max 0.4/0.8 Mpa ( 60/120 psi)
_______________________________________________
Machine weight
» 6,500 Kg [ 14,330 lbs ]
Machine dimensions (L x W x H)
» 2,600 mm x 2,150 mm x 2,500 mm
. [ 102.36 in x 84.65 in x 98.43 in ]
. Footprint including coolant tank
Gross weight
» 5,140 kg [ 11,334 lbs ]
Crate dimensions (L x W x H)
» 2,720 mm x 2,200 mm x 2,550 mm [ 107.09 in x 86.61 in x 100.39 in ]
