The R1 is our ultra-compact tending system for X5, X7, X9 machines.
Built with KUKA’s reliable 6-axis robot, the SYIL R1 Machine Tending System is the perfect solution for high-mix, low-volume tasks.
The robot and grid pattern are programmed through the SIEMENS controller.
The R1 cell is designed to automate repetitive tasks associated with machine tending, such as loading and unloading parts into CNC machines. The robot autonomously retrieves parts from the flat table, loads them into the machine, removes the finished part, and places it on the flat table again, or on any other outfeed mechanism.
CSA compliant electrical system
Reach 901 mm [ 35.47 in ]
Repeatability 0.02 mm [ 0.0008 in ]
Payload 6.7 kg [ 14.8 lbs ]
Protection IP65
_______________________________________________
Material handling method: Grid Pattern
» 600 mm x 520 mm x 150 mm
. [ 23.62 in x 20.47 in x 5.91 in ]

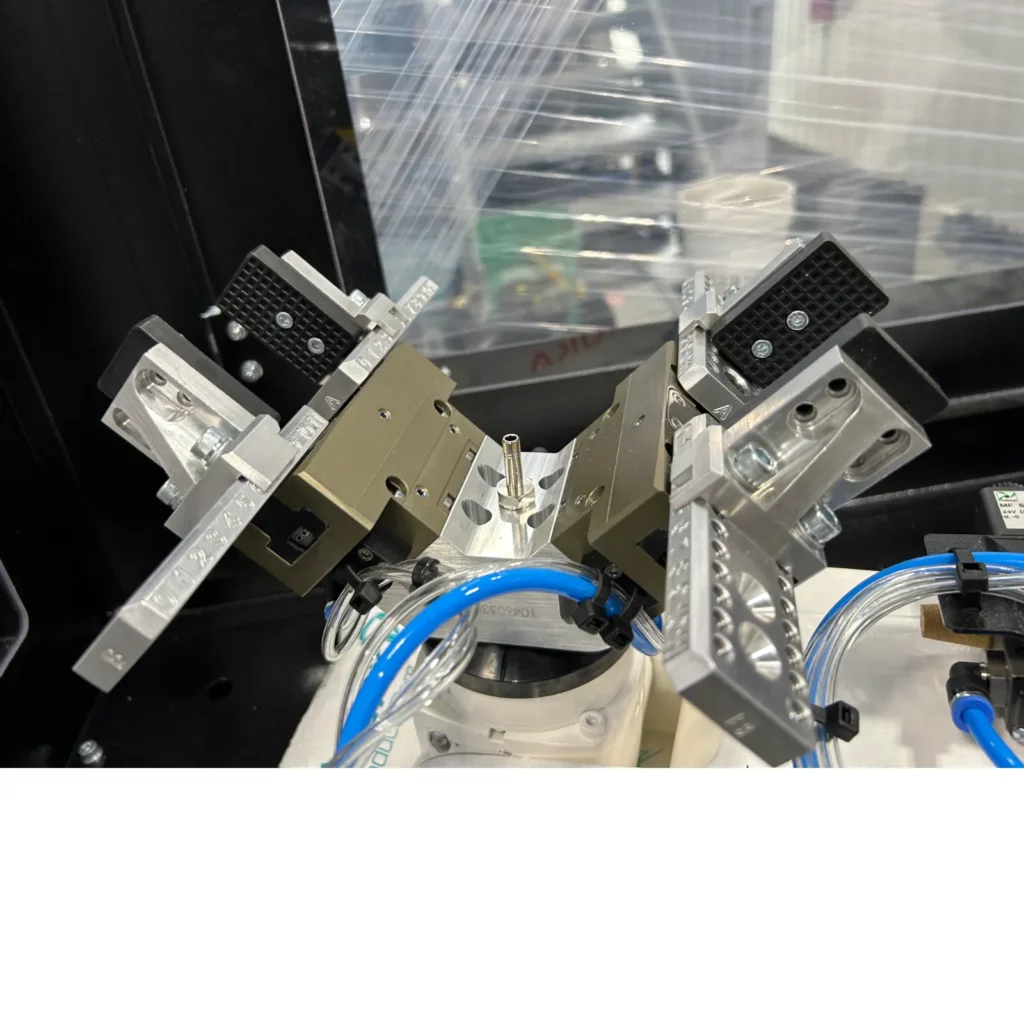

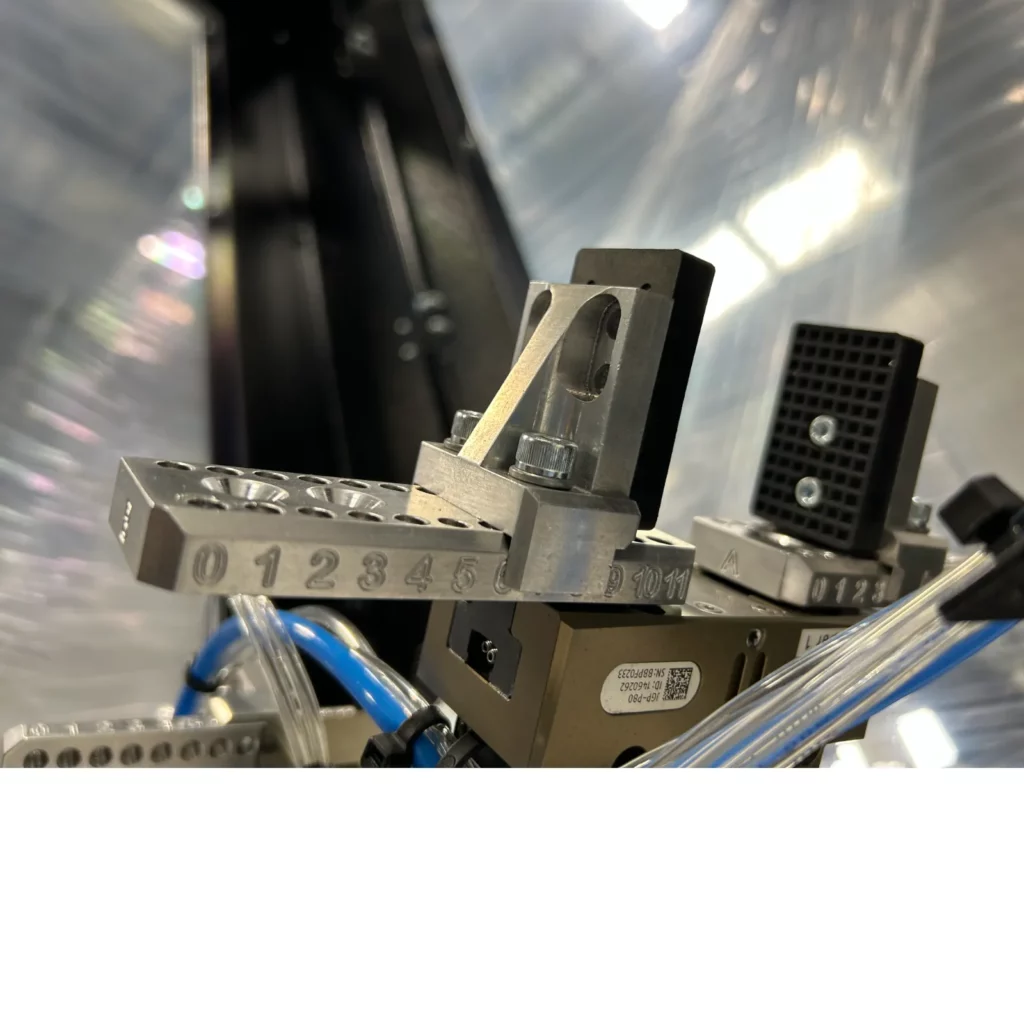

Stroke per jaw 8 mm [ 0.31 in ]
Closing force 550 N [ 123 lbf ]
Opening force 610 N [ 137 lbf ]
Electrical requirement 200-240VAC – 16A
Air pressure min/max 0.6/0.8 Mpa ( 90/120 psi)
_______________________________________________
Unit weight
» 200 Kg [ 440 lbs ]
Unit dimensions (L x W x H)
» 600 mm x 520 mm x 1,500 mm
. [ 23.63 in x 20.5 in x 59.1 in ]
Gross weight
» 200 kg [ 440 lbs ]
Crate dimensions (L x W x H)
» 800 mm x 600mm x 1,600mm
. [ 31.5 in x 23.62 in x 63.0 in ]
