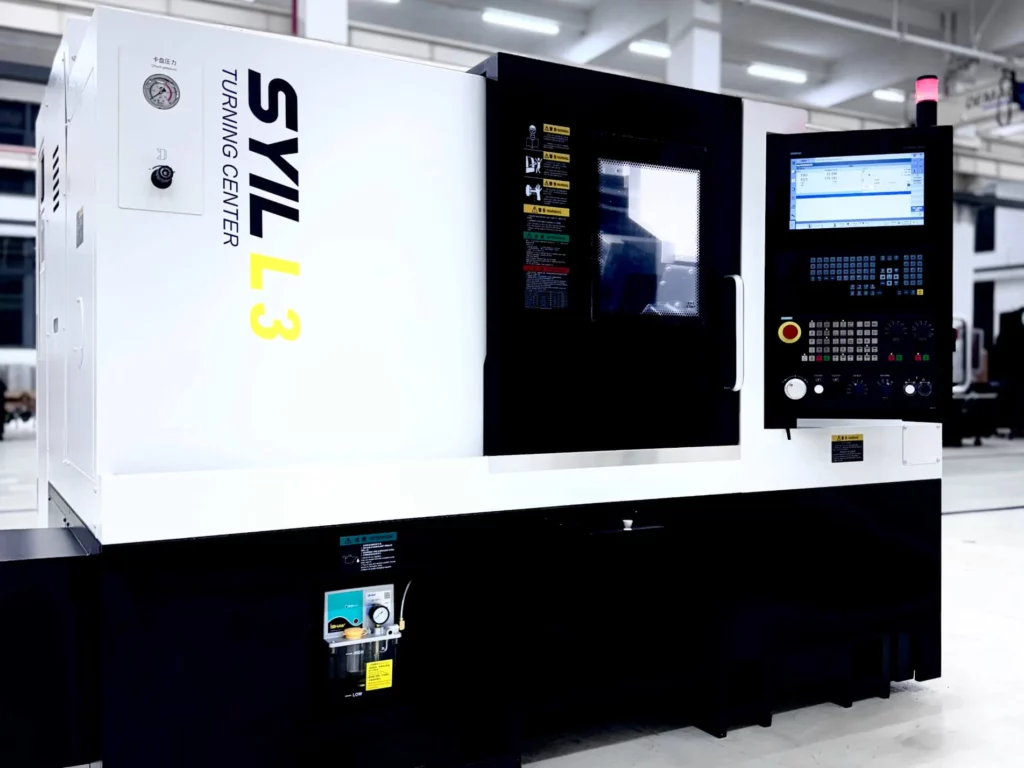

Processing Capacity

• Chuck size: 8 inches
• Max. swing diameter over bed: ø550 mm
• Max. swing diameter over carriage: ø290 mm
  (with Y axis: 200 mm)
• Max. workpiece length: 500 mm
  (with Y axis: 530mm, with Counter Spindle: 450 mm)
• Max. workpiece diameter: ø380 mm

Spindle

• Max. speed: 4000 rpm
• Spindle nose: A2-6
• Spindle bore diameter: ø63 mm
• Through spindle bore diameter: ø52 mm
• Spindle power: 11/15 kW
• Min. C-axis indexing: 0.001°

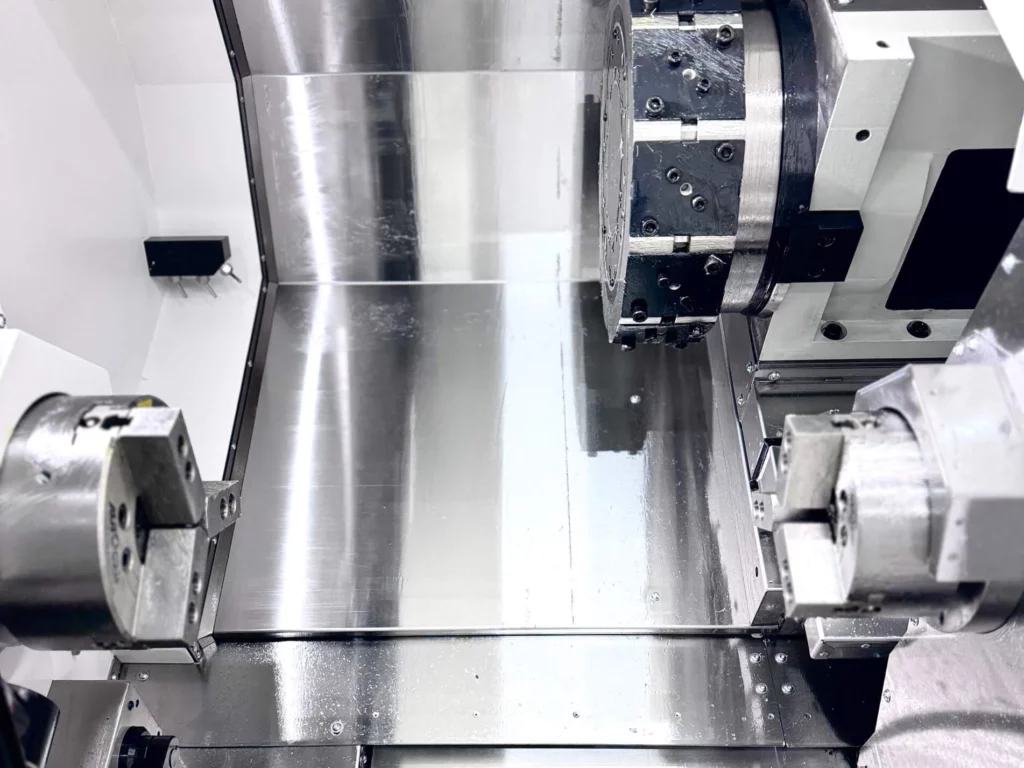

Counter Spindle

• Chuck size: 6 inches
• Rate speed / Max speed: 1750/6000 rpm
• Spindle nose: A2-5
• Spindle bore diameter: ø56 mm
• Through spindle bore diameter: ø45 mm
• Spindle power: 11 kW
• Travels:530 m
• Rapid traverse:30 m/min

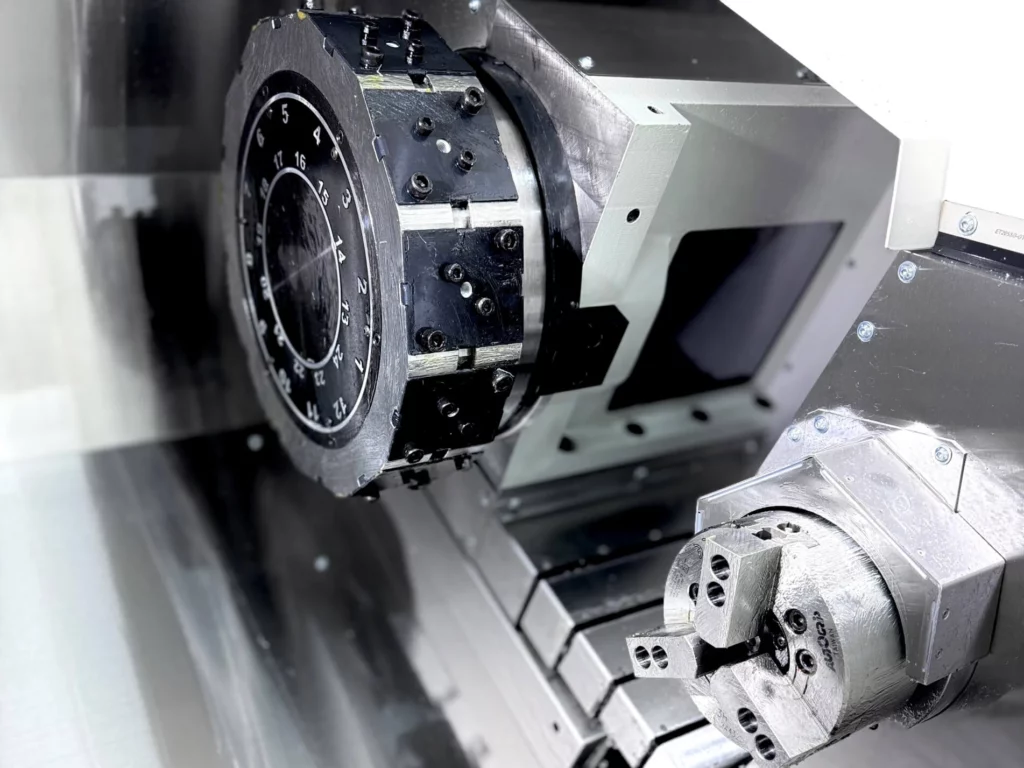

Tool Holder

• Type: Power Turret
• Tools: 12
• Min. Tool to Tool: 0.2 s
• Max. Tool to Tool: 0.5 s
• Max tool shank size: 25×25 mm
• Max tool shank diameter: ø40 mm
• Max. Live Tooling Speed: 5000 rpm
• Live Tooling Model: BMT55

Travels

• X Rapid traverse: 30 m/min
• Z Rapid traverse: 30 m/min
• Y Rapid traverse: 15 m/min
• X Travels: 190+10 mm
• Z Travels: 550mm (with Y axis: 490+-50 mm)

Tail Stock

• Travels from Tail Stock to Chunk: 465 mm (with Y axis: 500 mm)
• Tail Stock Rapid Traverse: 30 m/min
• Sleeve taper: MT4

Accuracy

• Finish turning cylindrical accuracy: IT6
• Finish turning parts surface: Ra0.4-1.6
• Finished turning parts roundness: ≤0.003 mm
• Position accuracy (Ｘ): 0.005 mm
• Position accuracy (Z): 0.008 mm
• Repeat accuracy (Ｘ): 0.002 mm
• Repeat accuracy (Ｚ): 0.004 mm

Dimensions and Weight

• Dimensions(LxWxH): 2500x1720x1740 mm
  (with Y axis: 2680x1750x1850 mm, with Counter Spindle: 2680x1750x1850 mm)
• Weight: 4000 kg
